Mar 31, 2010

Spring Explorer View in Eclipse 3.5

I am working with Spring 3.0 and I use Eclipse as my IDE. As a novice in the arena of Spring, I was pretty much curious to make use of STS! Developers who are using Spring are really fortunate to have the STS plug-in in eclipse. That is simple awesome and cool!!

The details of installation and configuration for a simple project is given below in this post. I was working at it yesterday and thought of sharing this to all since what took 4-5 hours for me would just be completed in minutes for you!

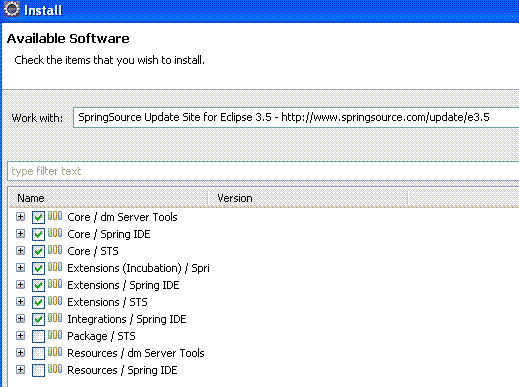

  • From Eclipse --> Help --> Install New Software and by making use of the update site SpringSource Update Site for Eclipse 3.5, I was able to configure STS in my eclipse Galilee with ease. Please find the figure below and ensure that the following are checked when you get ahead to the update site for the installation of STS
  • On clicking Next and Finish, you should be able to get through the installation within minutes!
  • After this,Restart Eclipse!

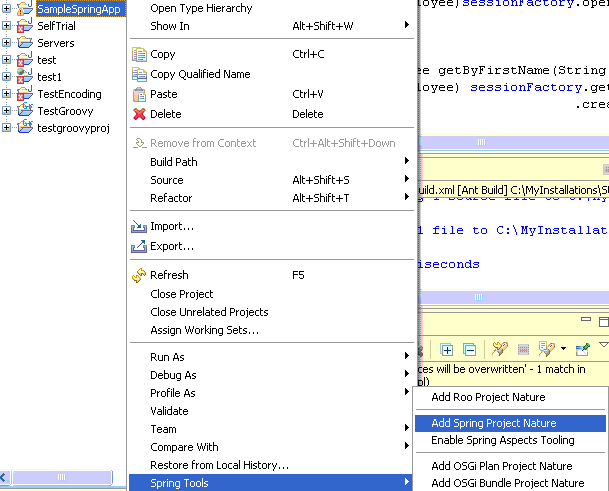

  • Once you do this, right click on your project and click Spring Tools --> add Spring Project Nature as shown below
  • On adding the Spring nature to your web application, your project in eclipse would show up as given below:
  • Further to this, go to Project --> Properties --> spring. I am considering a simple spring application. Enable Project specific settings in this window that comes up

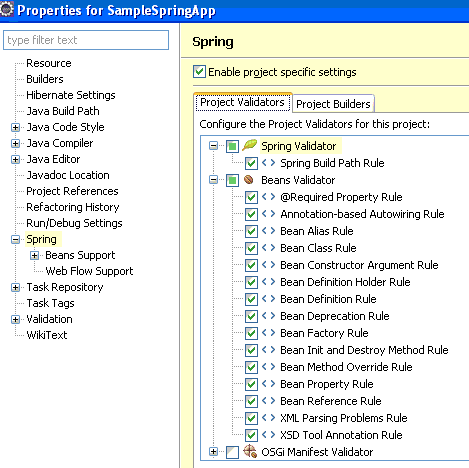

  • In project validators tab, ensure that Spring validators and Bean validators are checked as shown below:

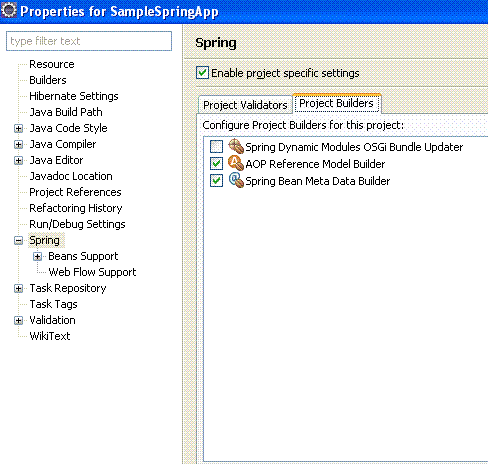

  • In project builders tab, ensure that AOP Reference Model Builder and Spring Bean Meta Data Builder are checked as shown below. Then click ok

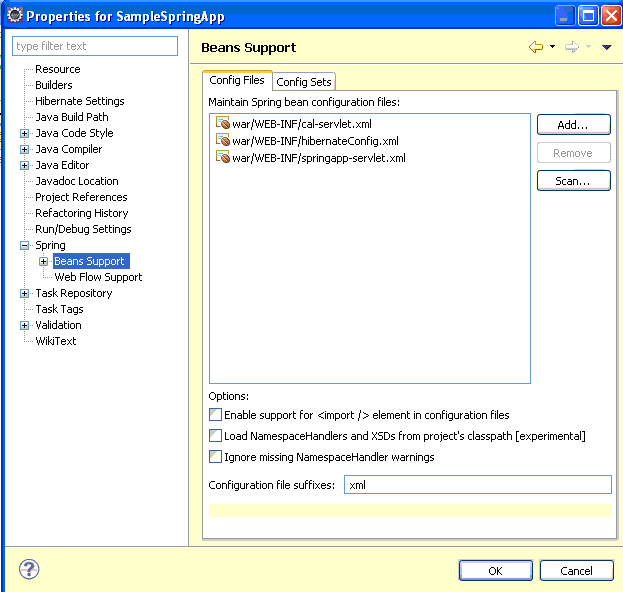

  • After this, goto Beans Support under Spring as shown below. Here scan and select the list of configuration xml files that you have in your spring application.
  • Once you do this, goto Project menu --> Check the entry 'Build Automatically'

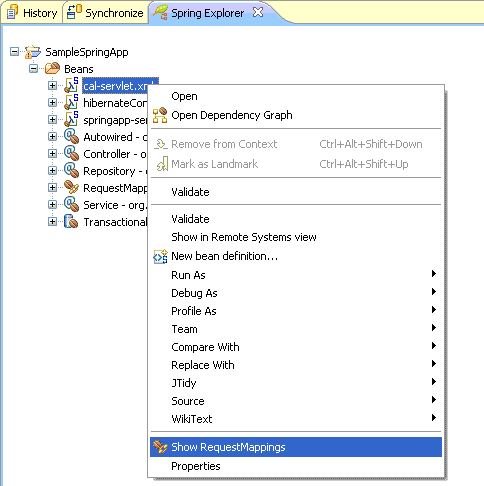

  • Now select the project in the Package Explorer and then go to Window menu --> view --> Other. Here click on Spring Explorer to see the bean and config file listing as shown below. Right click on the xml file and from the context menu, click @RequestMappings

Awesome!!You would be able to see all the request mappings within your application in a single screen view here!!!Pretty awesome and very useful indeed!!!!!The Spring Explorer view in STS is just too cool and superb!! Hats off to the Spring tool developers who did this great work in the customization of Spring Explorer view in Eclipse!
